Commercial & Industrial Energy Storage Cabinets

Prefabricated cabinet-type energy storage systems with flexible configuration for diverse C&I applications.

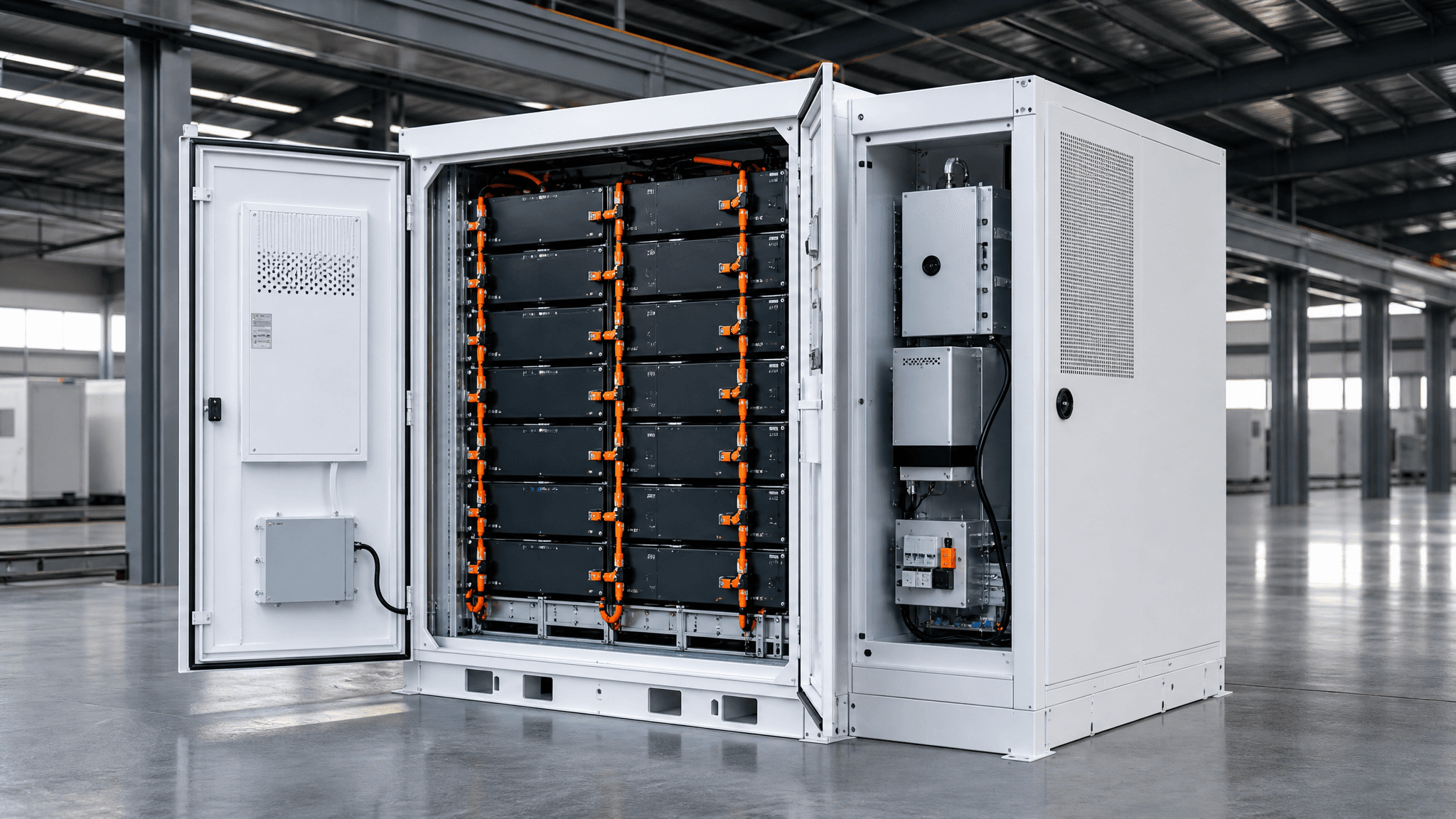

125(135)kW/261kWh Energy Storage All-in-One

125(135)kW/261kWh Energy Storage All-in-One

AC/DC All-in-One Machine

Cell Capacity314Ah
Configuration1P52S*5
Protection RatingIP54/IP55 (Optional); PACK: IP67
Rate0.5P
Fire ProtectionPerfluorohexanone / Aerosol (Optional)
Rated Capacity261 kWh
Efficiency90%
Dimensions1020 × 1450 × 2450 mm
Cycle Life6000 cycles
Applications: Industrial & Commercial, Off-grid/Microgrid, Zero-carbon Parks
Request Quote

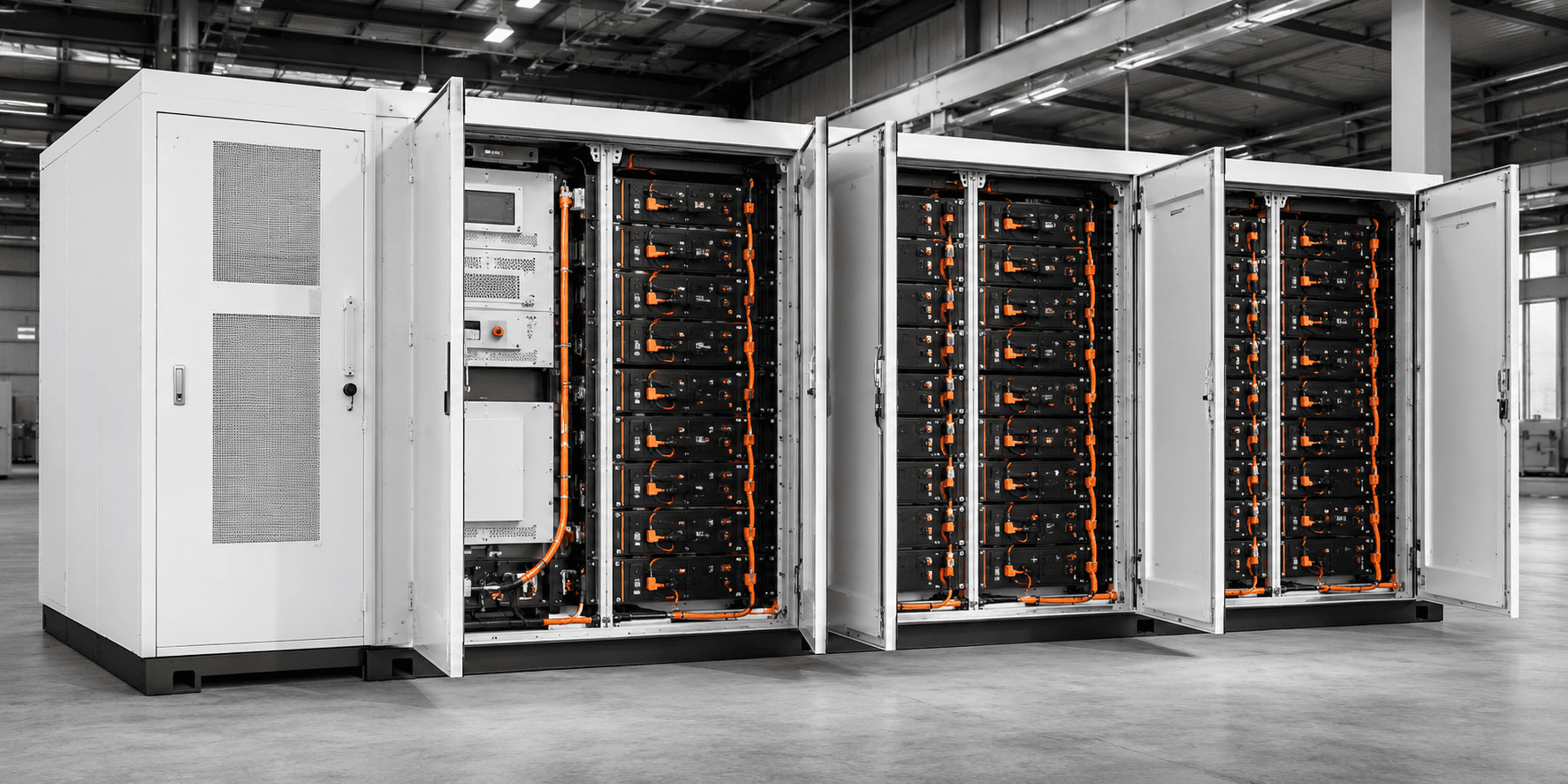

250kW/450kWh Energy Storage All-in-One

250kW/450kWh Energy Storage All-in-One

DC Battery Cabinet

Cell Capacity587Ah
Configuration1P48S*5
Protection RatingIP54/IP55 (Optional); PACK: IP67
Rate0.5P
Fire ProtectionPerfluorohexanone / Aerosol (Optional)
Rated Capacity450.82 kWh
Efficiency90%
Dimensions1800 × 1650 × 2450 mm
Cycle Life8000 cycles
Applications: Industrial & Commercial, Off-grid/Microgrid, Zero-carbon Parks
Request Quote

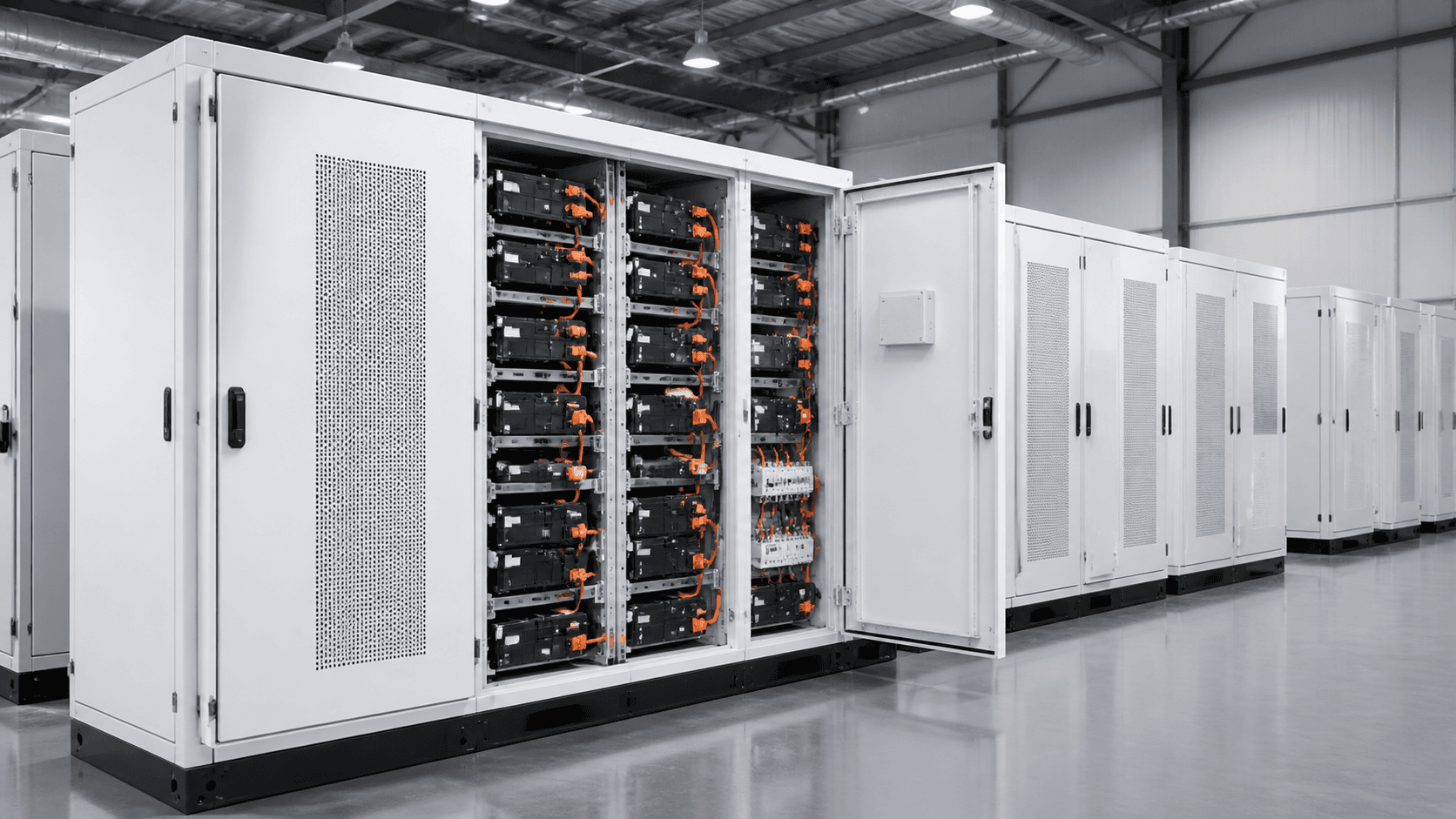

261/417/835kWh DC-Side Cabinet Series

261/417/835kWh DC-Side Cabinet Series

DC Battery Cabinet

Cell Capacity314Ah
Configuration1P52S*5/8
Protection RatingIP54/IP55 (Optional); PACK: IP67
Rate0.5P
Fire ProtectionPerfluorohexanone / Aerosol (Optional)
Rated Capacity261/417/835 kWh
Efficiency93%
DimensionsStandard Cabinet Sizes
Cycle Life8000 cycles
Applications: Industrial & Commercial, Off-grid/Microgrid, Zero-carbon Parks
Request Quote

Project Applications

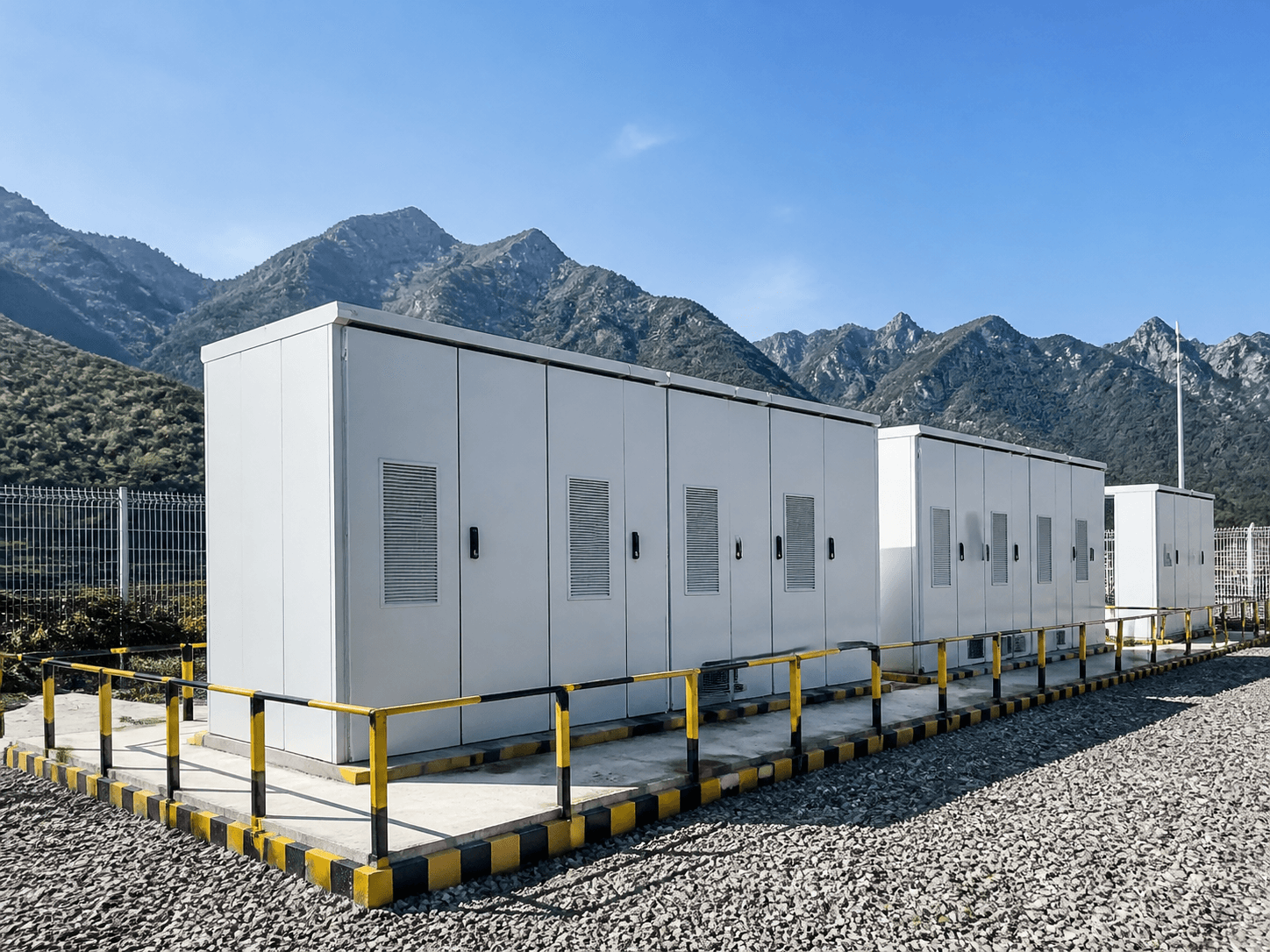

Sichuan Zero-Carbon Factory

Sichuan Zero-Carbon Factory

Capacity: 1MW/1.856MWh

I&C

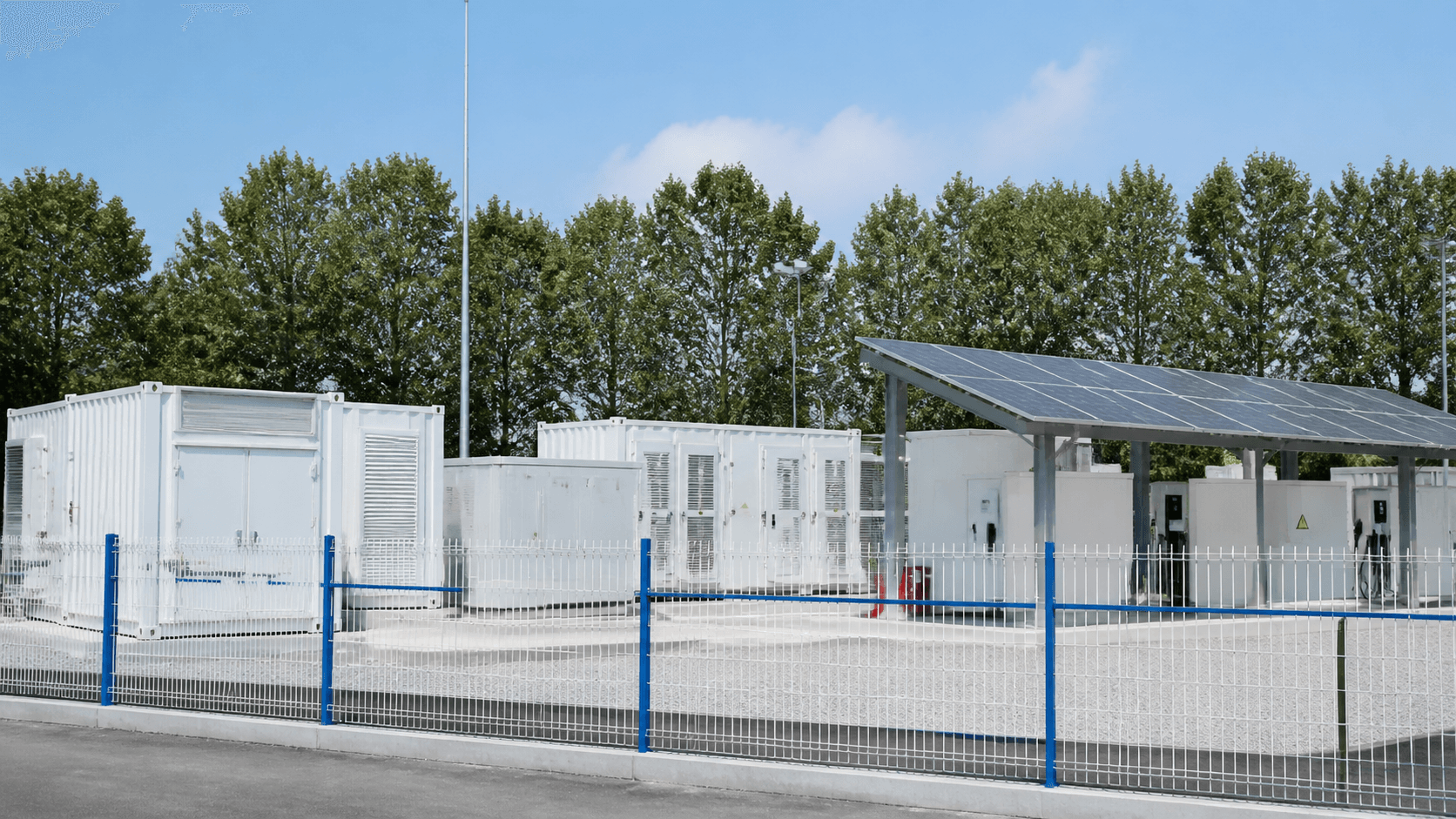

Shandong PV-Storage-Charging

Shandong PV-Storage-Charging

Capacity: 0.875MW/1.624MWh

I&C
Suzhou PV-Storage-Charging

Suzhou PV-Storage-Charging

Capacity: 1.25MW/3.72MWh

I&C

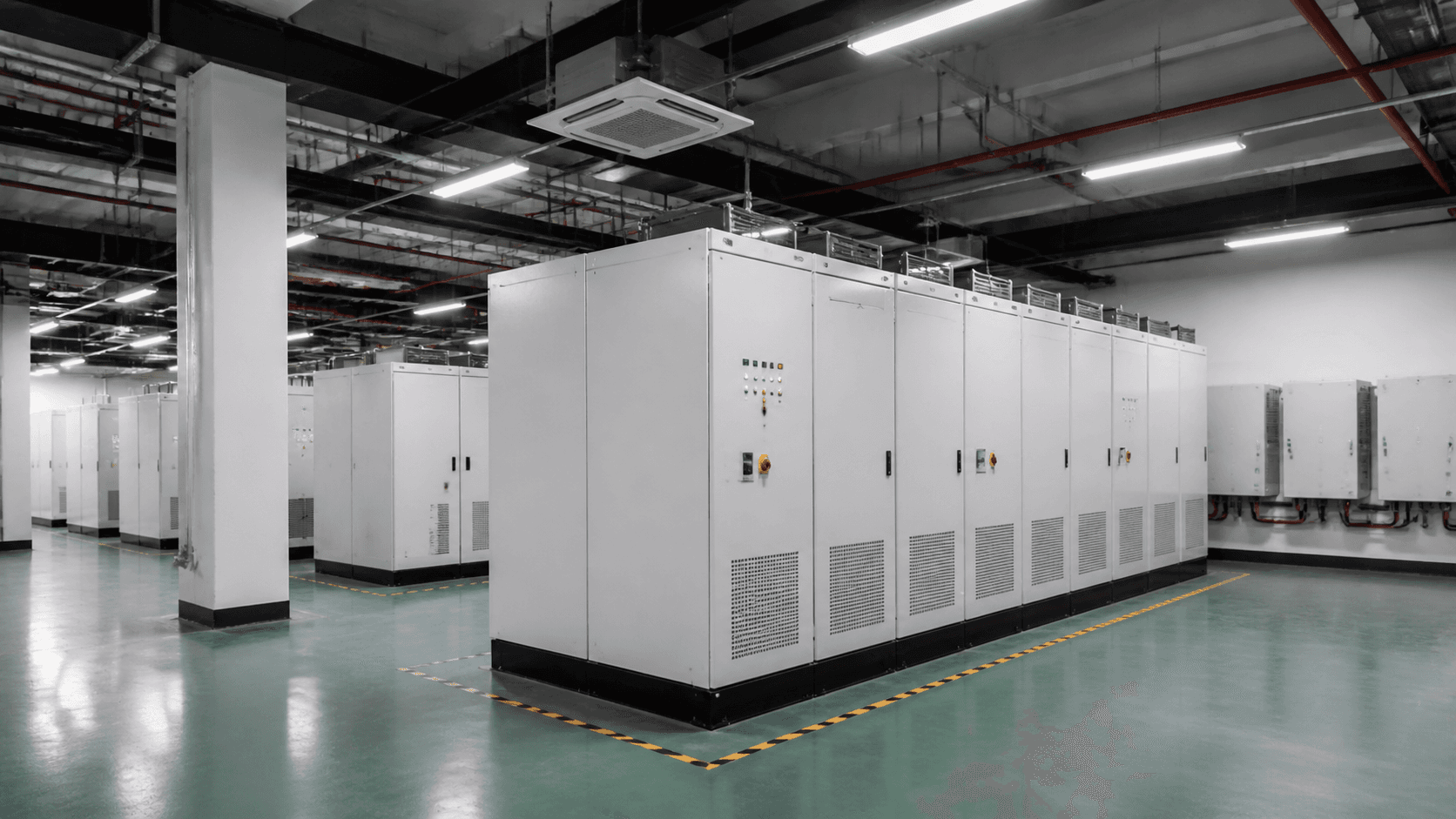

Djibouti Off-Grid Project

Djibouti Off-Grid Project

Capacity: 500kW/1MWh

Off-grid
